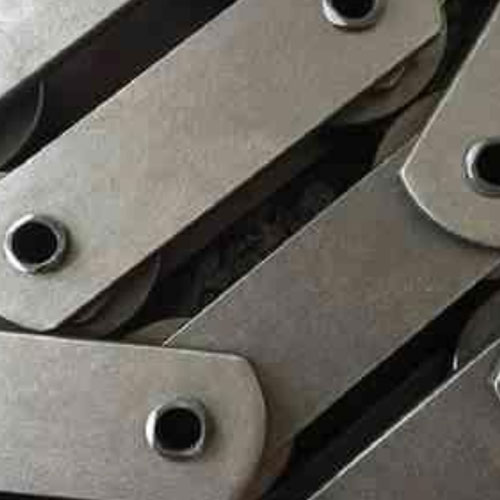

Hollow Pin Type Palm Oil Chain

Hollow Pin Type Palm Oil Chain - Gambar 2

Hollow Pin Type Palm Oil Chain - Gambar 3

Hollow Pin Type Palm Oil Chain

Dapatkan penawaran terbaik untuk produk dan layanan industri dengan solusi tepat sesuai kebutuhan operasional Anda.

Dapatkan penawaran

Kategori: Komponen Palm Oil Mill

Deskripsi
Ulasan (0)

Deskripsi

Part Number	Chain No	Pitch P (mm)	Inner Width E (mm)	Sidebar T (mm)	Sidebar H (mm)	Pin D (mm)	Pin Holes G (mm)	Roller Diameter F (mm)	Average Ultimate Strength Q (kN)
PH-5127	5127	101.6	19.05	5.1	38.1	19.05	13.2	47.75	54
PH-4P18	4P18	101.6	19.05	5.1	38.1	19.05	13.2	47.75	80
PH-5130	5130	101.6	25.4	6.4	50.8	26.92	20.07	66.67	160
PH-5325	5325	152.4	25.4	6.4	50.8	26.92	20.07	66.67	133
PH-5328	5328	152.4	25.4	6.4	50.8	26.92	20.07	66.67	155
PH-6P30	6P30	152.4	25.4	7	50.8	26.92	20.07	66.67	169
PH-5327	5327	152.4	25.4	8	50.8	26.92	20.07	66.67	222
PH-4161	4161	101.6	19.05	4.5	38.1	19.05	13.2	47.62	66
PH-4162	4162	101.6	25.4	6.4	50.8	26.9	20.07	66.67	115
PH-6242	6242	152.4	25.4	6.4	50.8	26.9	20.07	66.67	115
PH-6243	6243	152.4	38.1	9	60.96	31.75	23.1	88.9	196
